Product Overview

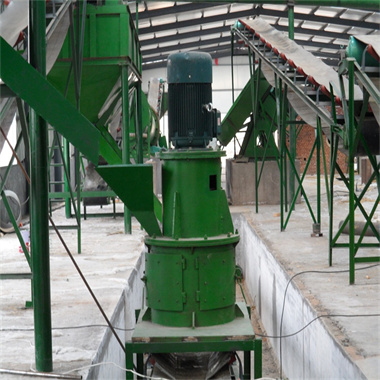

Vertical grinder is designed on the basis of fine crushing equipment at home and abroad. It can be widely used in one of the mainstream equipment of mineral processing equipment. It can be used for the final crushing of various materials such as limestone, cement clinker, mixture, gypsum, coal gangue, slag, copper ore, iron ore, etc. It is also one of the most commonly used crushing equipment in the compound fertilizer industry, suitable for raw materials And crushing of returned materials, especially for materials with high moisture content, strong adaptability, not easy to block, and smooth feeding. working principle

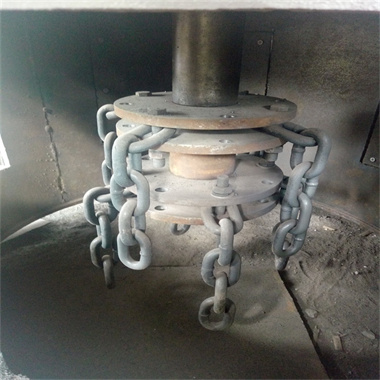

The material enters from the feed port and collides with the high-speed rotating chains in the casing. After the impact, the material is squeezed and broken, and then hits the inner wall of the casing and then collides with the chains, so that it is in the process of falling. After several impacts, it becomes powder or particles below 3mm are discharged from the lower part.

Details Images

PRODUCT SPECIFICATIONS



Specifications:

Model Capacity （t/h） Rotation speed (r/min) Motor Feeding size（mm） Feeding moisture weight（t） model Power （kw） LF450 2-3 2960 Y132S-2 7.5 ≤20 ≤6% 0.4 LF600 3-4 1440 Y160L-4 18.5 ≤30 ≤6% 0.6 LF800 4-5 1440 Y180L-4 22 ≤60 ≤6% 0.85

SALES AND SERVICE NETWORK

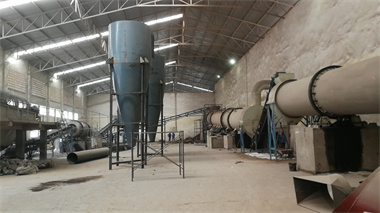

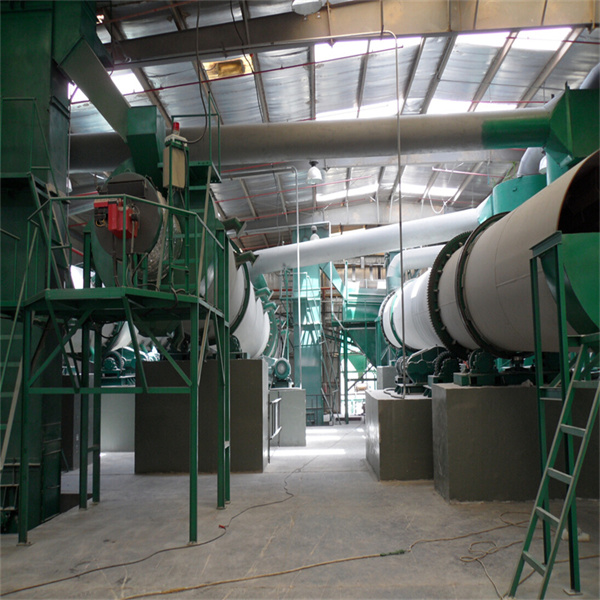

Successful Project

NPK fertilizer Project in China

Project in India

Project in Saudi Arabia

SIMILAR PRODUCTS

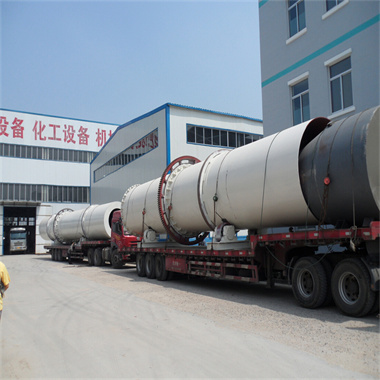

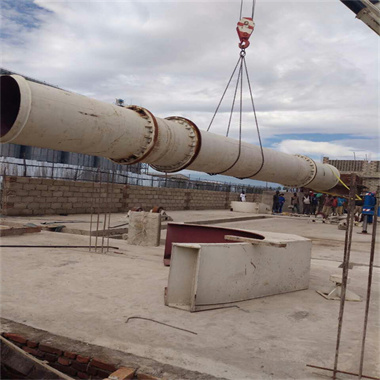

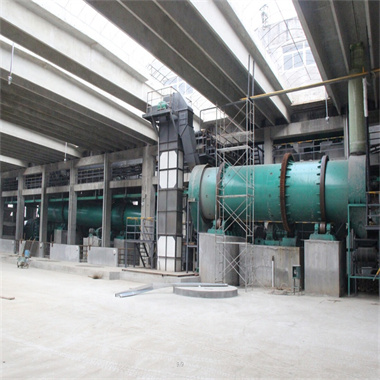

Delivery and installation site of our machines
