Overview
Essential details
Place of Origin: Shandong, China
Product Type: FERTILIZER
Condition: New
Machine Type: Granulator
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2023
Warranty of core components: 1 Year
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Gear
Warranty: 1 years
Key Selling Points: Long Service Life
Applicable Industries: Manufacturing Plant, Energy & Mining, Other
Showroom Location: Egypt, Turkey, Saudi Arabia, Indonesia, India, Thailand, UAE, Algeria, South Africa, Nigeria, Uzbekistan
Application: Fertilizer Pellet Making Machine
Raw material: Chemical Powder, organic waste
Capacity: 1-10t/h
Final product: Ball Shape Fertilizer
Material: Carbon Steel Made
Working method: Agglomerate
Application Scope: NPK Fertilizer Industry ,organic fertilizer industry
Feature: High Working Efficiency
Pellet diameter: Fertilizer:1-6mm
Packaging Details standard container
Port : Qingdao ,Shanghai, Tianjin
Lead time:
|
Quantity(sets)
|
1 - 10
|
>10
|
|
Lead time (days)
|
20
|
To be negotiated
|
Product Overview

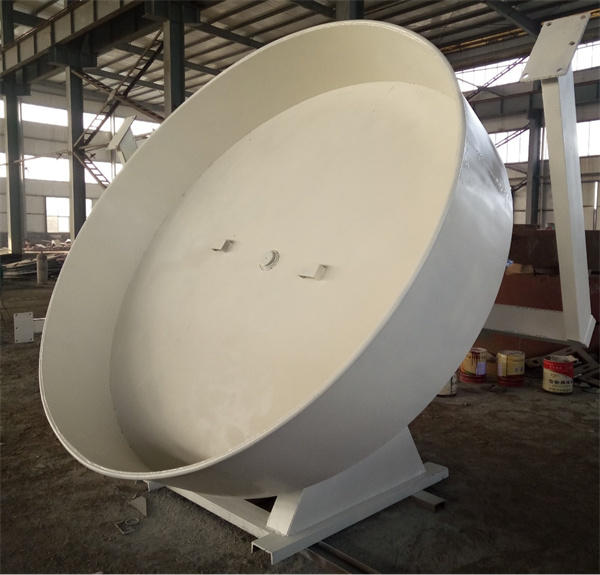

Disc granulator is a critical machine in fertilizer production process.Its quality decides directly the efficiency and quality of end product.Pellets produced via granulator machine are a little more dense,and more sepherical than other agglomeration methods.

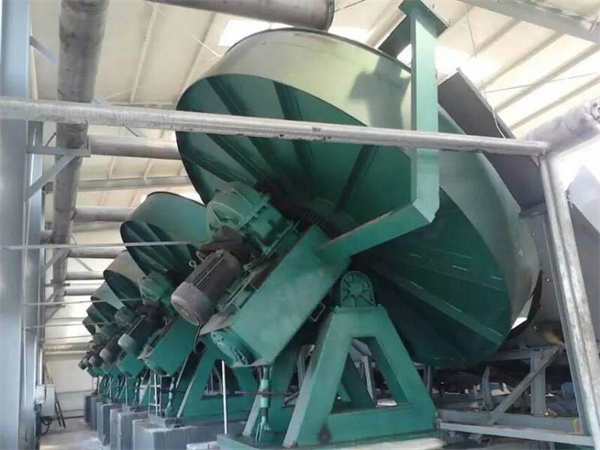

1 How disc granulator works?
Disc granulator work by tumbling raw material on a rotating disc.The fines or seed pellets become stacky with the water or steam and pick up feeding raw materials as they tumble,this allows the pellets to grow to the desired size,at which point they exit the granulator and are sent to the rotary dryer for following process by the belt conveyor.
2 The component of disc granulator
1 .Disc
2 .Drive assembly
3 .Scraper blade and its support
4 .Support base
5 .Adjustment device
FEATURES AT A GLANCE
1. The rate of pellets is higher and little recycle.,which make it more efficient in making granules.
2. Disc granulator requires less maintenance and have fewer parts that need placing.
3. It can be used widely for many industries,such as chemical industry,mining industry and agricultural industry.
PRODUCT SPECIFICATIONS
|
Model
|
Size(m)
|
Capacity(t/h)
|
Inclination (degree)
|
Motor power(kw)
|
|
DP2400
|
φ2.4mX0.45m
|
1-2
|
44-55
|
7.5
|
|
DP2600
|
φ2.6mX0.45m
|
2-3
|
44-55
|
7.5
|
|
DP2800
|
φ2.8mX0.45m
|
3-4
|
44-55
|
11
|
|
DP3200
|
φ3.2mX0.45m
|
4-5
|
44-55
|
11
|
|
DP3500
|
φ3.5mX0.45m
|
5-6
|
44-55
|
15
|

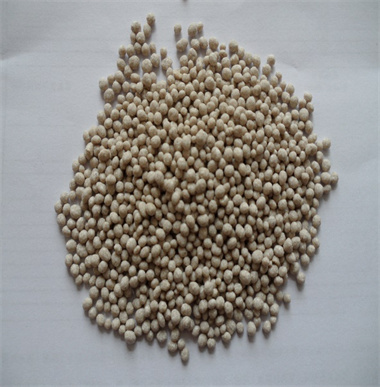

Final granules produced by our machines
SALES AND SERVICE NETWORK

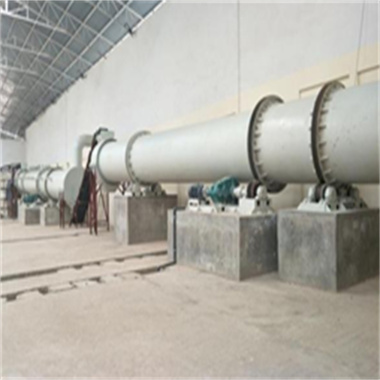

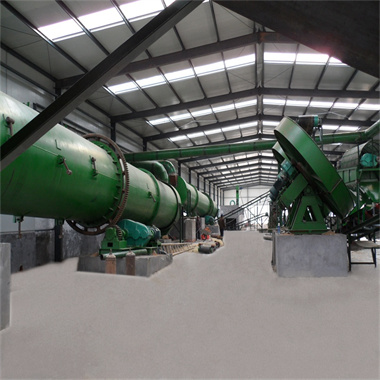

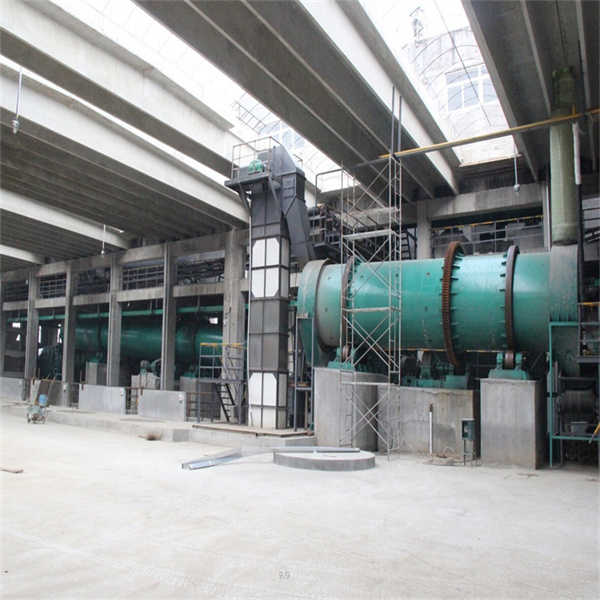

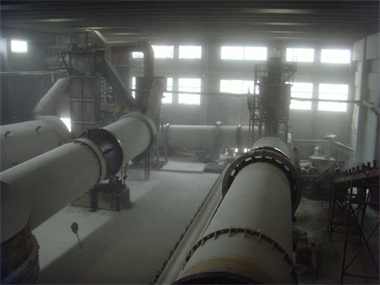

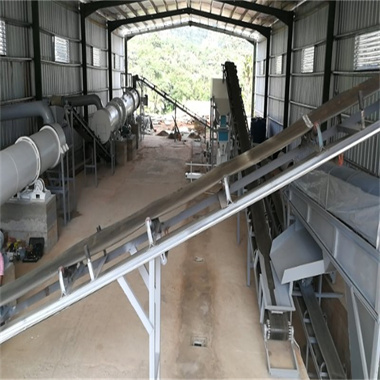

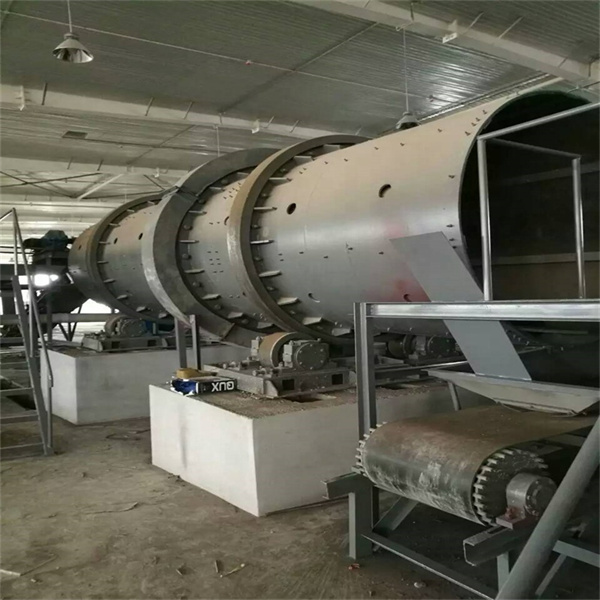

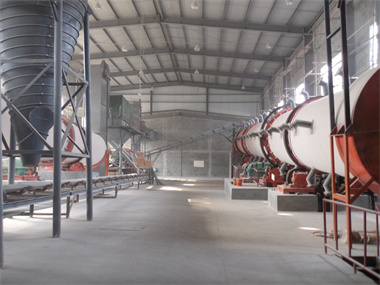

Successful Project
Project in China
Project in North America
RELATED PRODUCTS
1.Rotary drum granulator

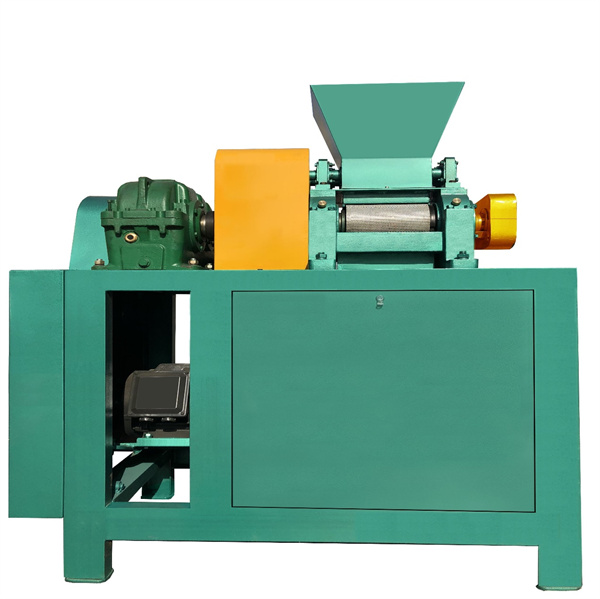

2.Double roller compact granulator
3.NPK fertilizer production line

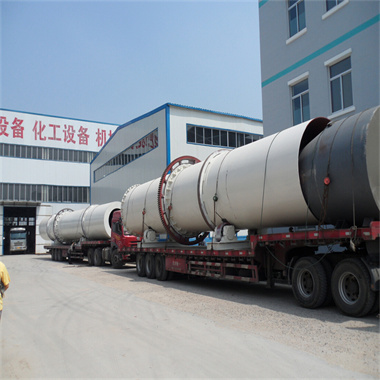

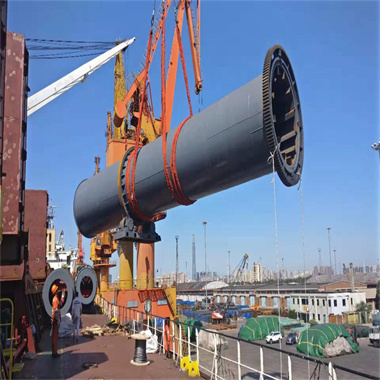

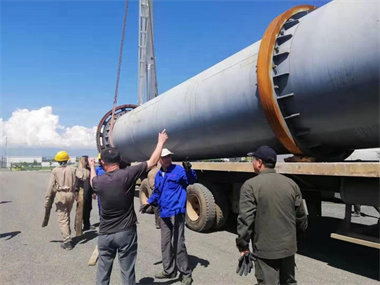

Delivery machines to our clients
