Overview

Essential details

Place of Origin: Shandong, China

Product Type: FERTILIZER

Condition: New

Machine Type: Granulator

Video outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: New Product 2023

Warranty of core components: 1 year

Core Components: PLC, Engine, Bearing, Gearbox, Motor, Gear

Warranty: 1 years

Applicable Industries: Manufacturing Plant, Energy & Mining, Other

Showroom Location: Egypt, Turkey, Saudi Arabia, Indonesia, India, Thailand, UAE, Algeria, South Africa, Nigeria, Uzbekistan

Application: sieving Machine

Capacity: 10000-300000T/Y

Material: Carbon Steel Made

Application Scope: Fertilizer Industry ,chemical ,mining

Feature: High Working Efficiency

Pellet diameter: 2.5-4.5mm

Working method: sieving and seperating

After Warranty Service: Video technical support

Product Overview

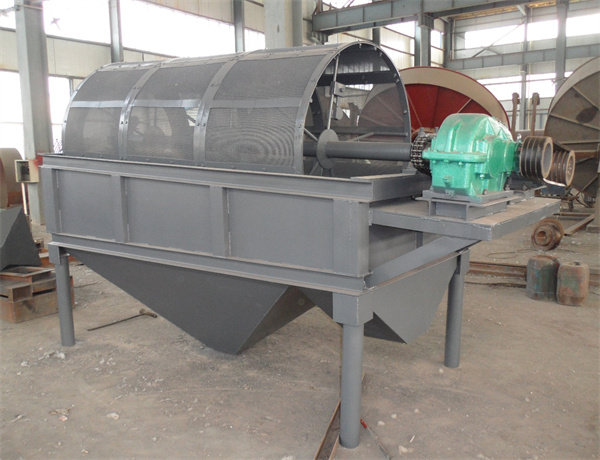

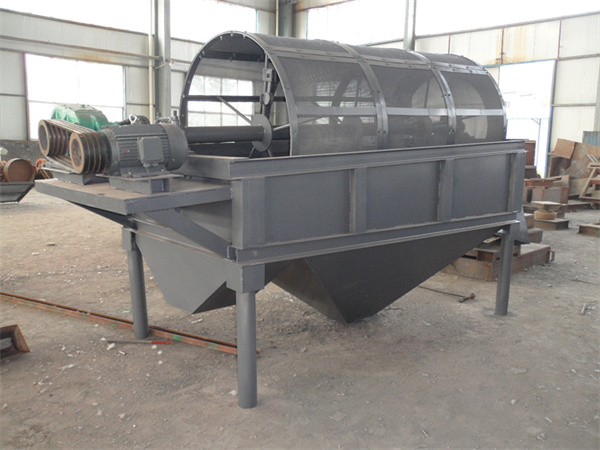

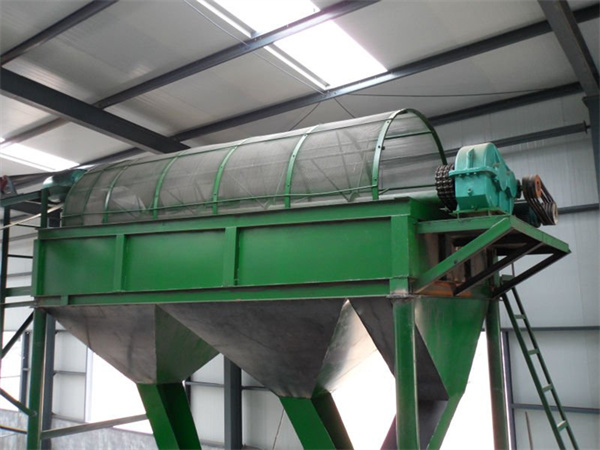

Rotary sieve machine is a commonly used equipment in the production of fertilizer. It is mainly used to separate the finished product and the returned material, and can also realize the classification of the finished product, so that the finished product can be evenly classified. The combined screen is easy to maintain and replace. The machine has simple structure, convenient operation and stable operation.

1 How rotary sieve works?

The rotary sieve is composed of a motor, a reducer, a drum device, a frame, a sealing cover, an inlet and an outlet and other parts. The roller device is installed on the frame obliquely. The motor is connected with the roller device through a coupling through a reducer, and drives the roller device to rotate around its axis.

2.Features at a glance

(1) The screening efficiency is high. Because the equipment is equipped with an automatic cleaning mechanism, during the screening process, no matter how viscous, wet, or miscellaneous the materials entering the separating screen are, the relative movement of the screen cleaning machine and the screen body will not be blocked.

(2) Good working environment .The entire screening mechanism is designed in a sealed dust cover, which
completely eliminates the dust flying during the screening process, thereby improving the working environment.

(3)The equipment has low noise. During the operation of the equipment, the noise generated by the material and the rotating screen is completely isolated by the sealed dust cover, so that the noise cannot be transmitted to the outside of the equipment, thereby reducing the equipment noise.

(4) Long service life .The equipment screen is composed of several circular flat steels and its cross-sectional area is much larger than that of other separation equipment screens, so the service life is improved.

PRODUCT SPECIFICATIONS

Final granules produced by our machines
