Overview

Essential details

Place of Origin: China

Product Type: FERTILIZER

Condition: New

Video outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: New Product 2023

Warranty of core components: 1 Year

Core Components: PLC, Engine, Bearing, Gearbox, Motor, Gear

Brand Name: Reascend

Voltage: Customized

Dimension(L*W*H): Depends on capacity

Warranty: 1 Year

Key Selling Points: High Productivity

Applicable Industries: Manufacturing Plant, Farms, Energy & Mining, Other

Showroom Location:

Viet Nam, Indonesia, India, Thailand, South Korea, UAE, South Africa, Nigeria, Uzbekistan, Malaysia

Application: Powder Making Machine

Usage: milling materials into powder

Raw material: Urea, Ammonium Sulfate, MAP, DAP etc

Capacity: 10000-300000T/Y

Material: State Standard Carbon Steel

Final product: Powder

Feature: High Working Efficiency

Installation: Trained Workers

Automatic grade: Fully Automatic

After-sales Service Provided: Field installation, commissioning and training

Supply Ability

Product Description

Raymond mills are widely used in barite, calcite, potash feldspar, talc, marble, limestone, dolomite, fluorite, lime, activated clay, activated carbon, bentonite, kaolin, cement, phosphate rock, gypsum, glass , Insulation materials and other non-flammable and explosive mineral, chemical, construction and other industries with Mohs hardness not greater than 9.3 and humidity below 6%. The particle size can be adjusted arbitrarily within the range of 80-325 mesh, and some materials can reach up to 600 mesh.

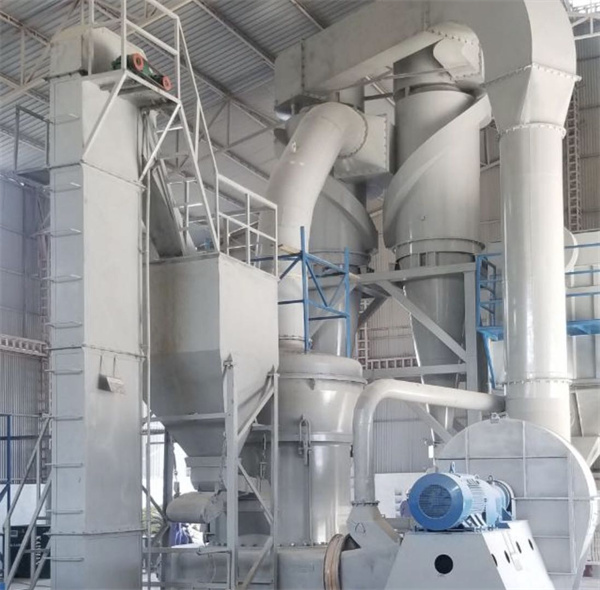

The structure of the machine is mainly composed of a host, an analyzer, a fan, a finished product cyclone separator, a fine powder cyclone separator and a wind pipe. Among them, the host is composed of a frame, an air inlet volute, a blade, a grinding roller, a grinding ring, and a cover.

The working principle of Raymond mill:

When working, the material to be crushed is fed into the machine from the feed hopper on the side of the machine casing, and the grinding roller device suspended on the plum blossom frame of the main machine revolves around the vertical axis and rotates itself at the same time. Due to the centrifugal force during rotation, The grinding roller swings outwards and is pressed tightly against the grinding ring, so that the shovel blade scoops up the material and sends it between the grinding roller and the grinding ring. The material is crushed due to the rolling and rolling of the grinding roller.

The machines used for producing granules phosphate :

According to specifications of various raw materials , the general machines included in granular process can be as following:

1.Granulating machine : disc granulator ,rotary granulator ,compact granulator or other granulation machines.

2. Drying machines: It is used for removing or reducing moisture inside the granules

3.Cooling machines : it is used for reducing the granules temperature and improveing the granules hardness.

4.Sieving machines: It is used for sieving fine powder ,qualified granules and oversize materials. the unqualified materials will be recycled and re-granulated.

5.Packing machine as the last machine.

Project show

Our equipments have exported to South Africa,India,Korea,India,Saudi Arabia,Indonesia, Malaysia, Loas, Vietnam,Dominician republic,Mongolia,Spain and other countries.

Delivery site of NPK fertilizer making equipments to Indonesia client

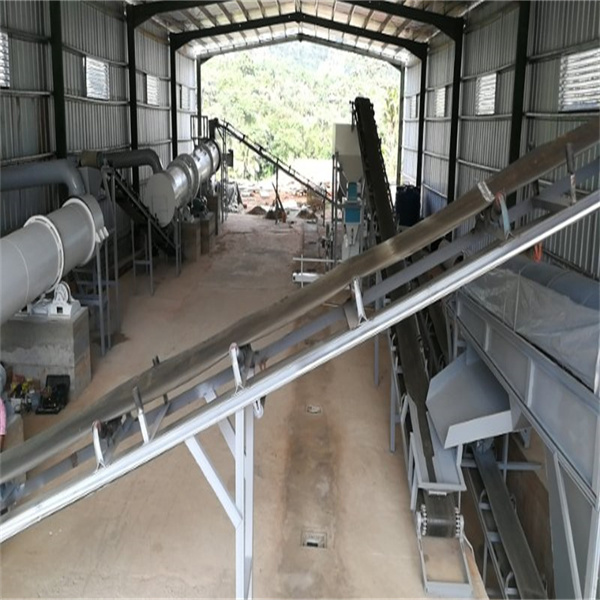

The installation site of NPK compound  fertilizer making equipments

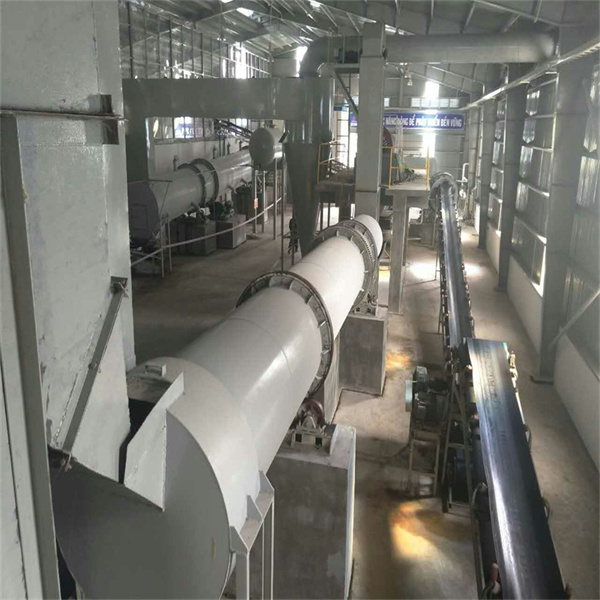

The installation site of annual capacity 30,000 tons NPK fertilizer project in Vietnam

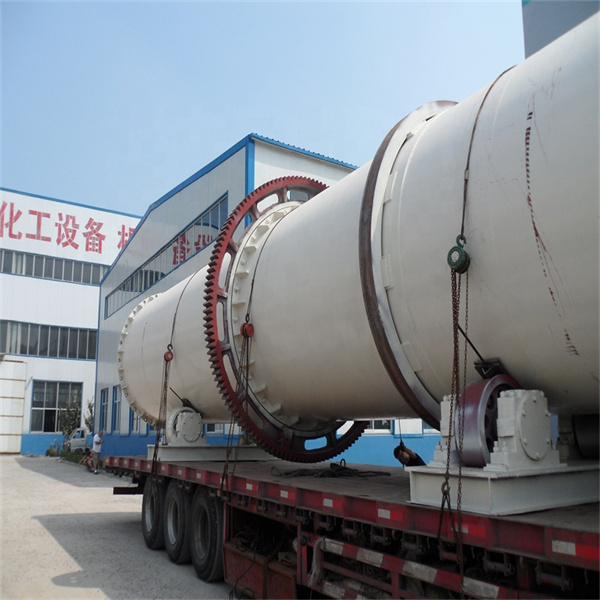

Loading equipments to our clients

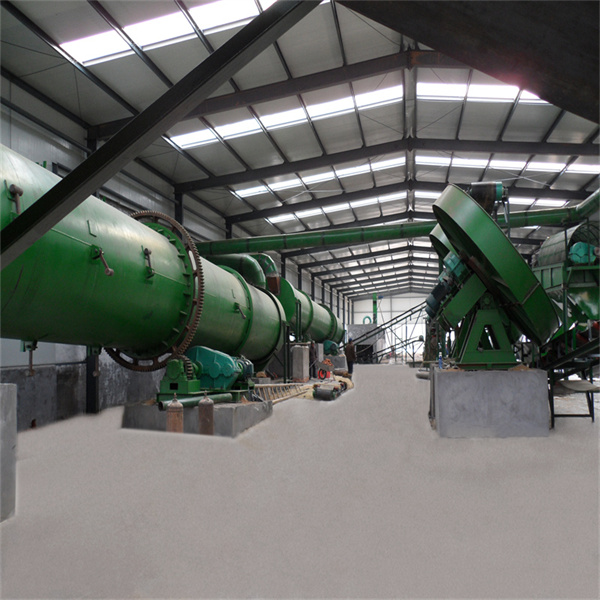

Our fertilizer projects in China and other countries

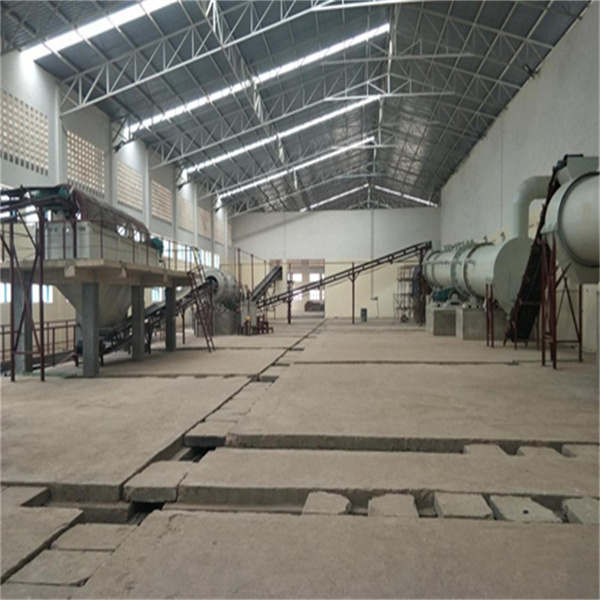

NPK and organic fertilizer project in Africa
