Overview

Essential details

Place of Origin: Shandong, China

Product Type: FERTILIZER

Condition: New

Video outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: New Product 2023

Warranty of core components: 1 Year

Core Components: PLC, Engine, Bearing, Gearbox, Motor, Gear

Warranty: 1 years

Applicable Industries: Manufacturing Plant, Energy & Mining, Other

Showroom Location: Egypt, Turkey, Saudi Arabia, Indonesia, India, Thailand, UAE, Algeria, South Africa, Nigeria, Uzbekistan

Application: mixing materials

Capacity: 10000-300000T/Y

Material: Carbon Steel Made

Application Scope: Fertilizer Industry ,mining

Feature: High Working Efficiency

Product Overview

The horizontal mixer is a continuous mixer, which is widely used in fertilizers, mines, grains and other mixing materials.

Working principle of horizontal mixer:

the horizontal cylinder is equipped with two-axis or single axis rotating and reversed paddles. The paddles rotate the materials in the axial and radial directions at a certain angle, so that the materials are mixed quickly and evenly. Performance characteristics of the horizontal mixer The rotation speed of the shaft driven by the reducer and the structure of the blade will weaken the gravity of the material. With the lack of gravity, the difference in particle size and specific gravity of each material is ignored in the mixing process. The intense stirring movement shortens the mixing time, making it faster and more efficient. Even if the material has a difference in specific gravity and particle size, it can achieve a good mixing effect under the rapid and violent tumbling of the staggered mixing blades. High mixing uniformity, low residual amount, suitable for mixing more than two kinds of fertilizers and additive premixes.

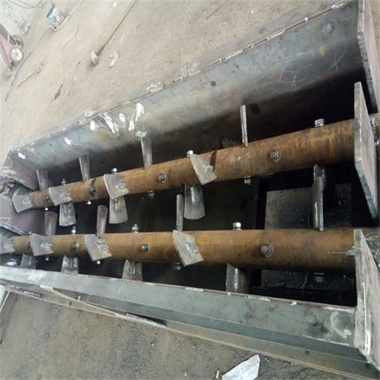

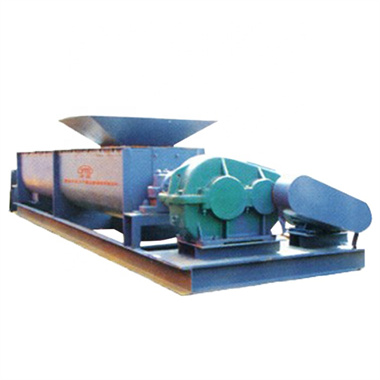

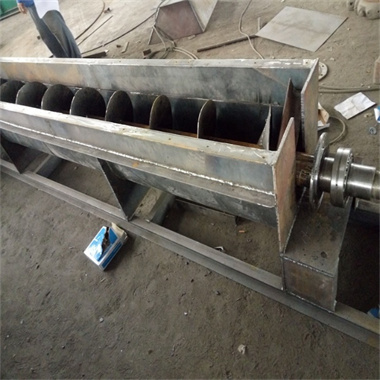

Details Images

Specifications:
