Commodity details

Processing customization: Yes

Type: Belt conveyor

Model number: B500-B1000

Conveying capacity: 1-30 (t/h)

Power: 3-15 (KW)

Transport distance: 1-50 (m)

Application: Transportation of materials

Belt width: 500-1000mm

Working Angle ≤22 degrees

Product Overview:

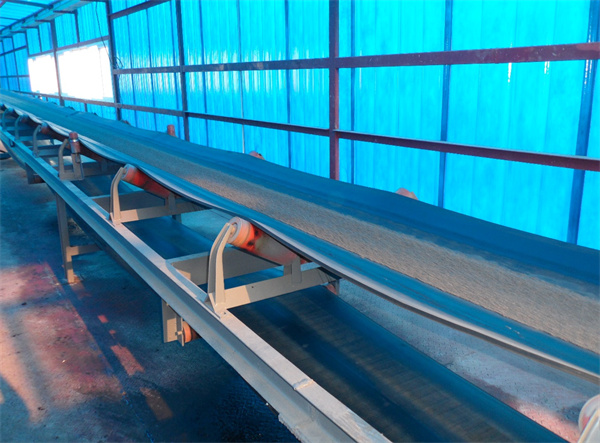

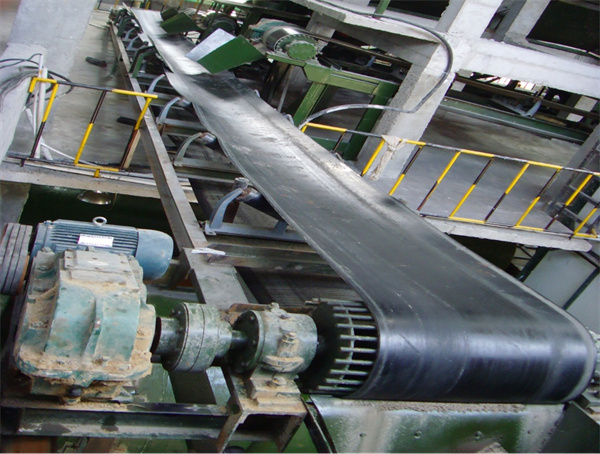

Belt conveyor is a kind of transportation equipment used in the production of compound fertilizer, organic fertilizer, biological fertilizer, controlled release fertilizer and other fertilizers. It is a machine for transporting materials in a continuous manner. It is mainly composed of a frame, electric roller, driven wheel, upper (lower) roller, roller support, conveyor belt, vertical roller (stop roller), tensioning device, transmission device, etc. It can be the material in a certain conveyor line, from the beginning of the feeding point to the unloading point between the formation of a material conveying process.

Belt conveyor is continuous transportation equipment in the fertilizer industry. Compared with other transportation equipment, it has the advantages of long transportation distance, large volume and continuous transportation, and it is easy to realize automation and centralized control.

Specifications:
